ETHERNET & POE OVER COAX

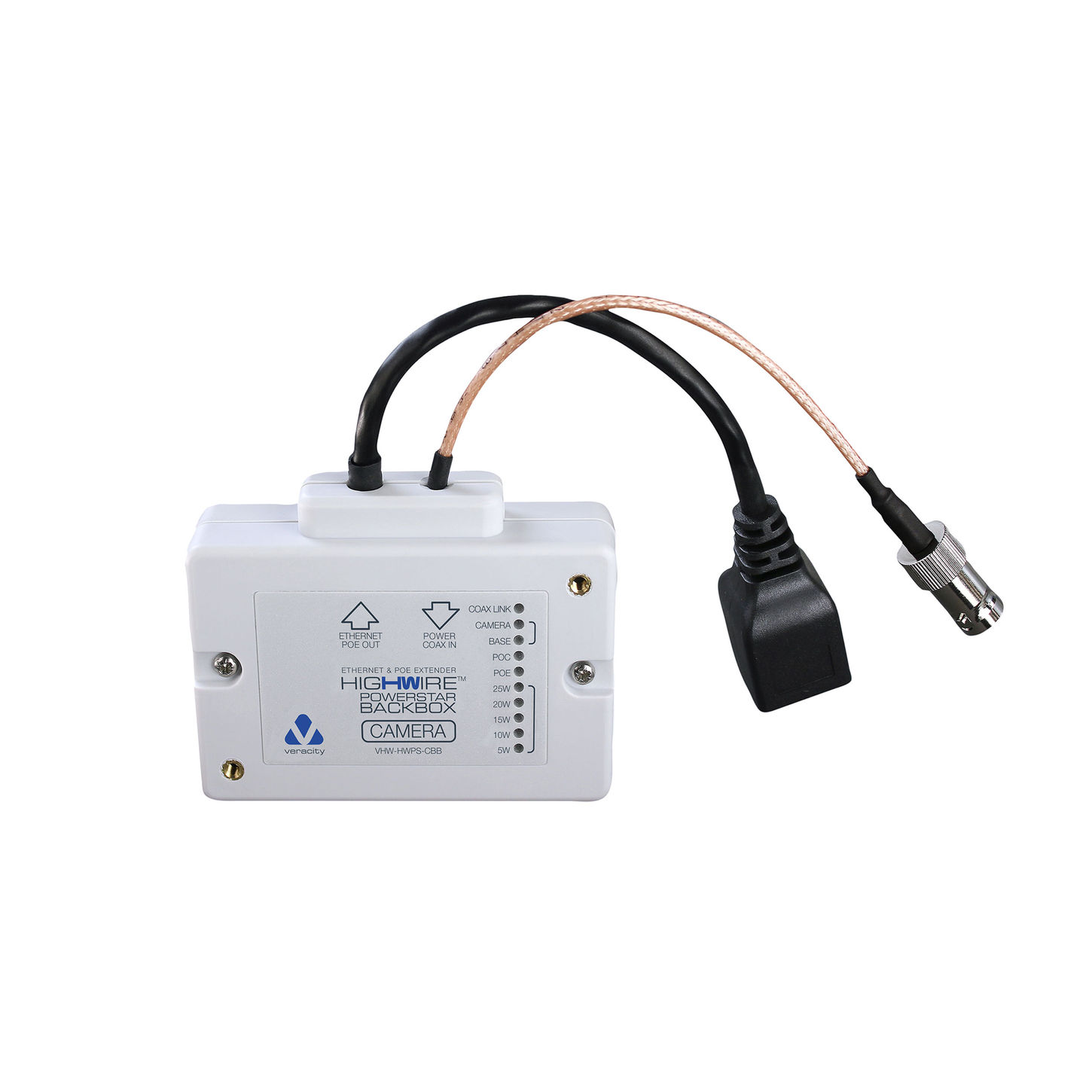

HIGHWIRE Powerstar Backbox
VHW-HWPS-CBB
| Compact unit for inside cameras housings.
| Flexible leads for easy connection in small spaces.
| Reliably powers POE Plus cameras up to 25watts.
| SAFEVIEW instantly checks connection + power status.
| Compatible with all HIGHWIRE Powerstar Base units.
| Simple fast, cost-effective installation.
| Full 100Base-TX Ethernet performance.
Camera backbox adaptor for Ethernet and POE over coax
The Backbox version of HIGHWIRE Powerstar is designed to fit inside a camera housing or backbox. It is powered by POE over coax and includes leads and connectors to link to the legacy coax and the IP camera itself. Like all Powerstar units, it includes SAFEVIEW status and power level indicators.
Inside The Housing
HIGHWIRE Powerstar Backbox
HIGHWIRE Powerstar (Base) connects to HIGHWIRE Powerstar Backbox over legacy coax cabling to deliver full bandwidth Ethernet and up to 25W POE for maximum reliability with minimal recabling. The Base unit may be powered by POE or directly by a 57V DC PSU for maximum POE delivery.
APPLICATION DIAGRAM
Ethernet and POE over legacy coaxial cabling
Compatible Products for...
HIGHWIRE Powerstar Backbox
A list of associated compatible products is shown below. Where the same product is listed, this means they can be used in pairs. To find out more about any listed product, use the button to return to IP Transmission Products and select the required item
HIGHWIRE Powerstar (Base)
HIGHWIRE Powerstar Base 4
HIGHWIRE Powerstar Base 8
